Zort-S
Hydraulic switch with position-independent mounting
The highly efficient Zort-S hydraulic switch can be installed in any position.
Structure

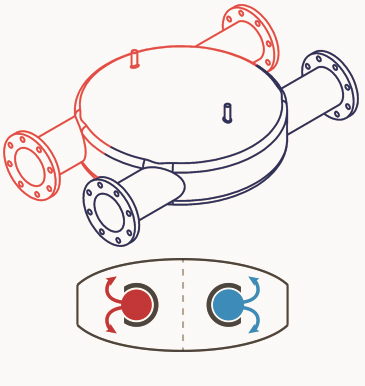

The two pipes of the separator each have a slot corresponding to the flow rates required for equalisation. If the pressure ratios between producer and consumer are unbalanced, the water swells out or is sucked in. This enables a straight flow in both pipes, thus avoiding turbulence. This greatly improves the separation of the flow and return temperatures and increases efficiency.
Benefit
- ideal for condensing boilers and cascade circuits
- maximum possible separation of flow and return
- almost resistance-free flow
- volume flow equalisation due to overflow or suction
- no flow vortices
Technical data
| Type | Size Ø | Performance | Connection |
|---|---|---|---|
|
ZS-45 |
200 mm |
45 kW |
DN 25 |
|
ZS-150 |
300 mm |
150 kW |
DN 40 |
|
ZS-230 |
400 mm |
230 kW |
DN 50 |
|
ZS-400 |
450 mm |
400 kW |
DN 60 |
|
ZS-650 |
500 mm |
650 kW |
DN 80 |
|
ZS-900 |
600 mm |
900 kW |
DN 100 |
|
ZS-1520 |
700 mm |
1,520 kW |
DN 125 |
|
ZS-3500 |
800 mm |
3,500 kW |
DN 150 |
Details & versions
|
Versions |
Steel S 235 JR |
|
Mounting types |
Wall, ceiling, floor |
|
Accessory |
Wall mounting set, insulation, flanges, connection pieces, TÜV test |
